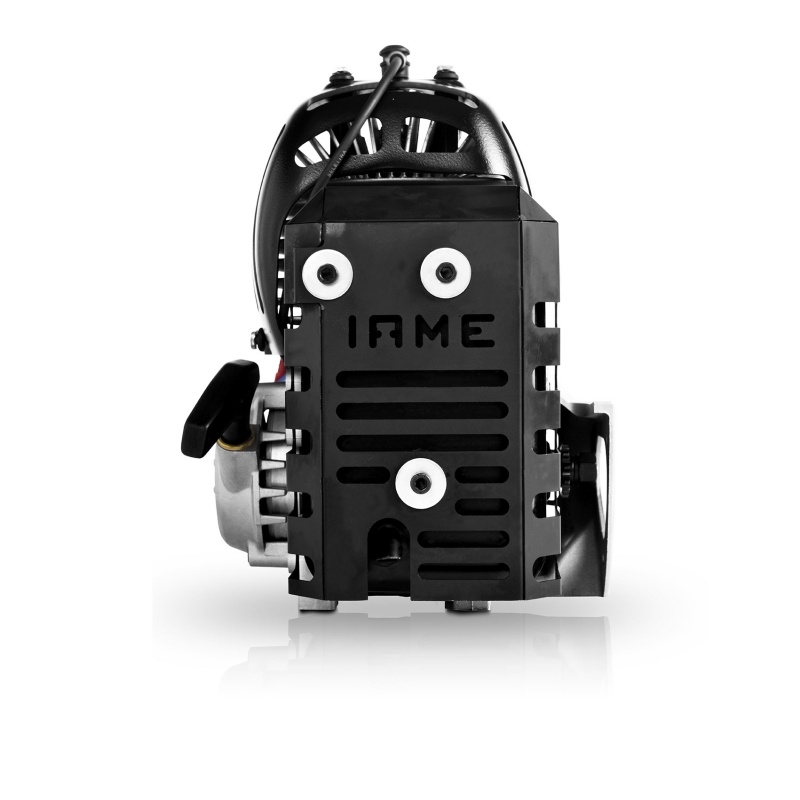

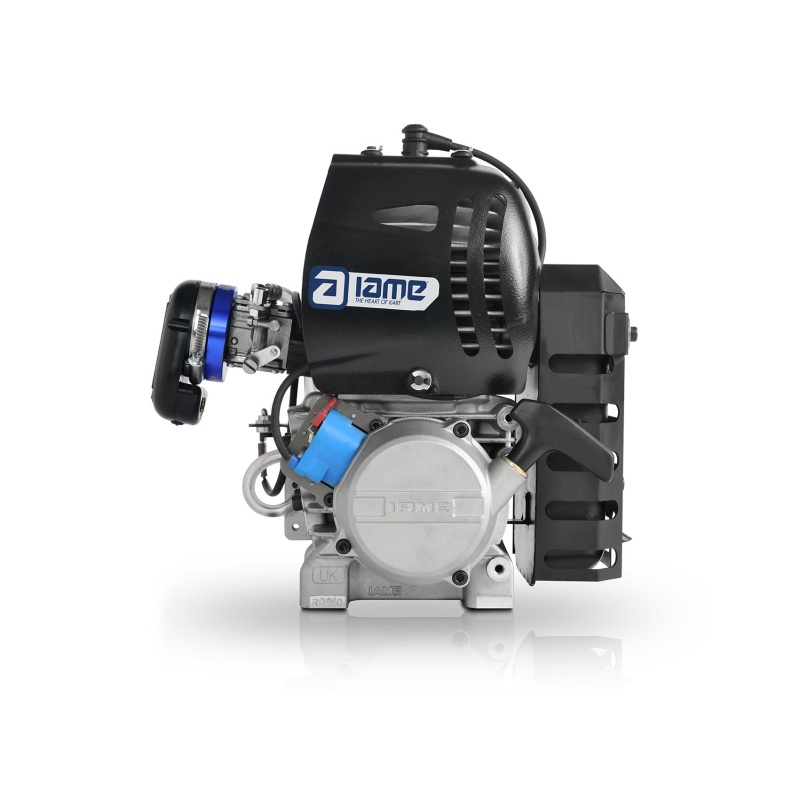

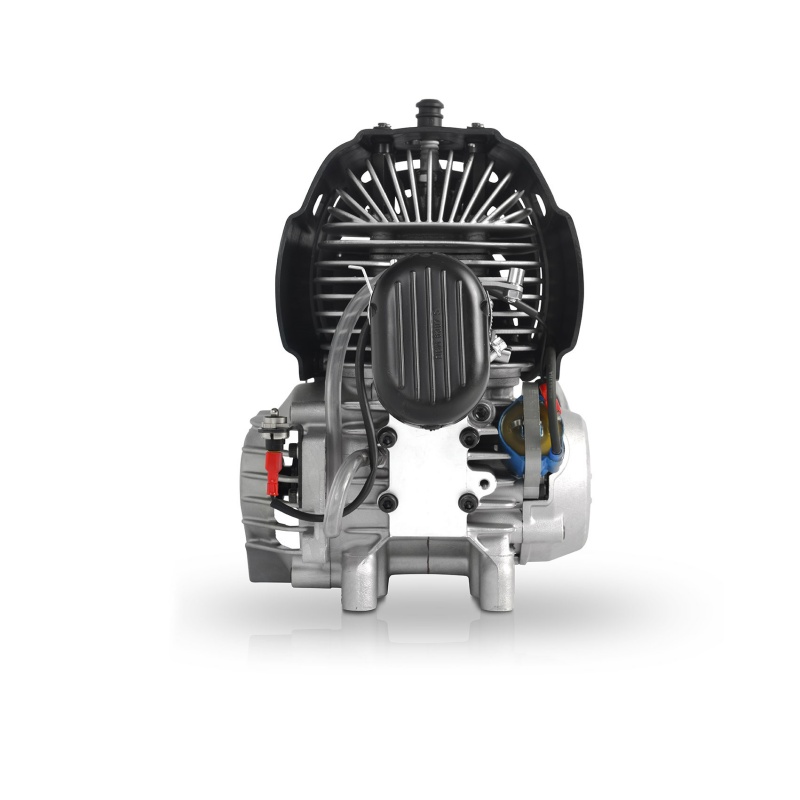

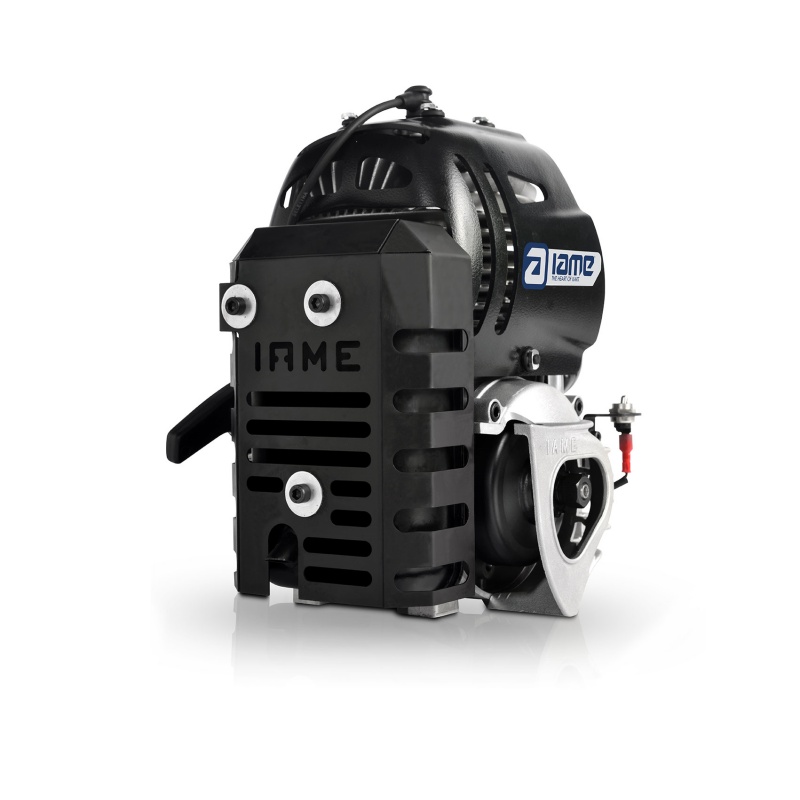

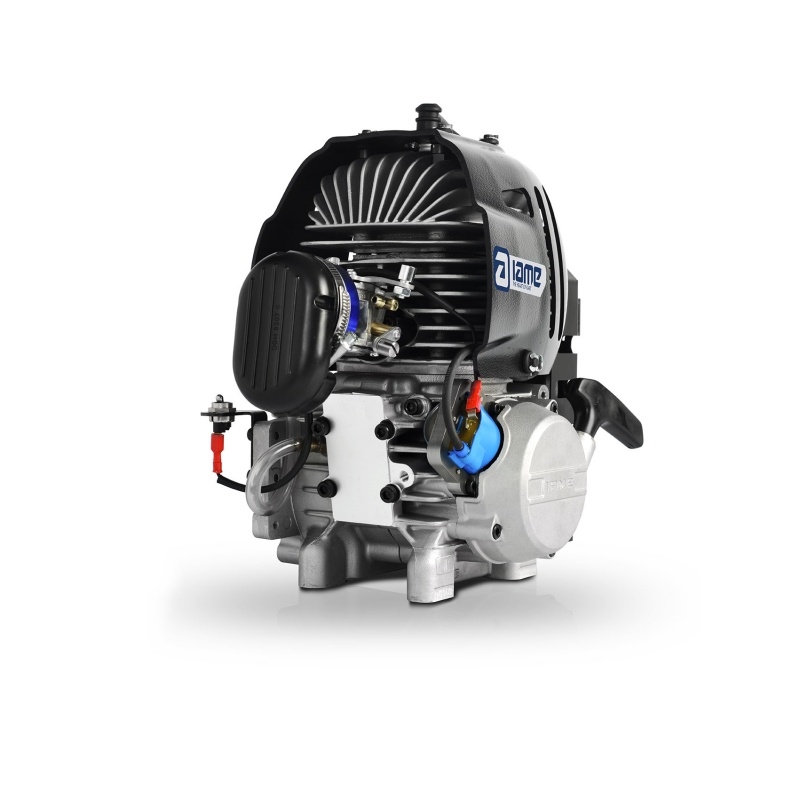

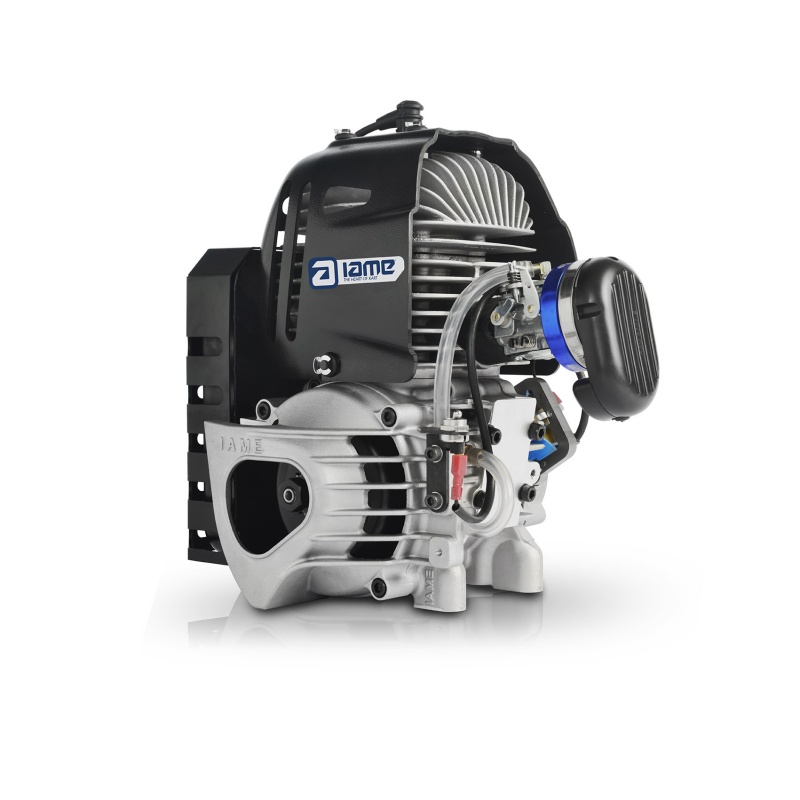

The M1 is the latest news in IAME’s production. This small and compact 60cc power unit is designed to introduce the very youngest drivers to Karting and to make life as easy as possible to Dads and Mechanics. The M1 requires a very easy installation as all accessories are fixed on the engine block. The engine needs very low maintenence and basic service skills. It is provided with an easy and effective pull start system and a Tillotson diaphragm carburetor. The exhaust system stands with the engine and doesn’t require the installation on the chassis. The simple 1.5l fuel tank completes the engine package. The M1 can be installed on 860/950mm wheelbase chassis. Safety is guaranteed by the cylinder/cylinder head and exhaust heat covers and a practical ON/OFF switch is located on the right side of the engine providing easy and immediate access to operators. The M1 is the power unit for the Drivers of the future and provides the perfect choice for Karting Trainers, Schools and Rental facilities. M1, the first step into Motorsport.
model: M1
description: Single cylinder – 2 stroke
class: Training – Stock Class
bore: Ø 41,80mm
max-bore: Ø 42,00mm
stroke: 43,30mm
displacement: 59,42cc
ports: 2
inlet-system: Piston Port
lubrication: Oil mixture
ignition-system: Analogic
transmission: Centrifugal Dry Clutch
cooling-system: Air
balancer-shaft: –
starter: Pull Start
carb-model: Tillotson HS323A
max-power: 2.0 Hp
max-torque: 2.5 Nm
max-rpm-limit: –使用损坏的产品会增加发生事故时受伤的风险。 始终使用处于良好保存状态的产品。 任何维修都必须得到 Racing Force 的书面授权，并且只能由专业人员使用相同的材料进行。 产品的更改、未经授权的维修和/或使用与原始材料不同的材料进行的维修会使保修失效并增加受伤的风险。 在赛事期间使用认证无效的产品可能会导致对驾驶员的处罚，甚至被取消赛事资格。 在任何情况下，请参阅每个产品的使用说明书中提供的说明。
